Natural Hydrogen

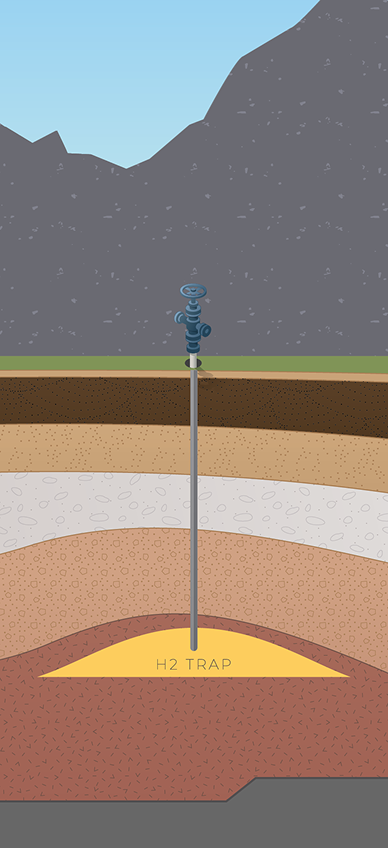

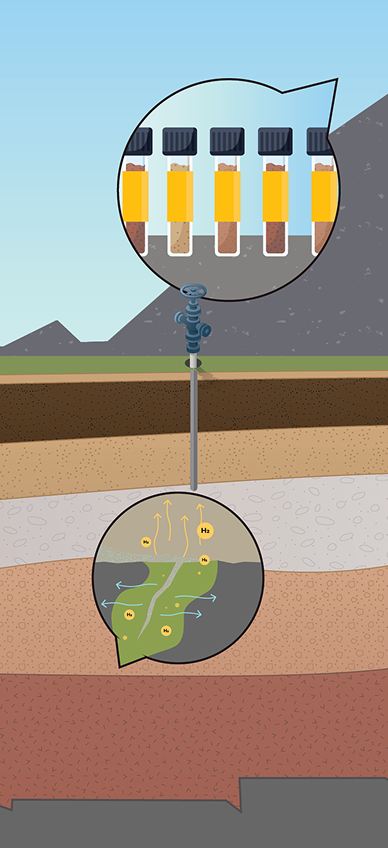

Natural hydrogen is a unique form of energy. It is a clean, carbon-free energy source in the earth’s subsurface made when groundwater reacts with iron-rich rock through a process known as serpentinization. Combined with radiolysis, which occurs when deep basement rocks decay, natural hydrogen is formed and accumulates. Studies suggest that the earth may be producing up to 23 million tons of hydrogen per year, more than 20% of global hydrogen demand. If even a tiny fraction of it is trapped under tight seal rocks in underground formations, we could be sitting on hundreds or thousands of years of carbon free energy with Koloma’s technology to produce it already in hand.

Natural hydrogen is the first new primary energy source the world has found since nuclear power was developed in the 1950s.

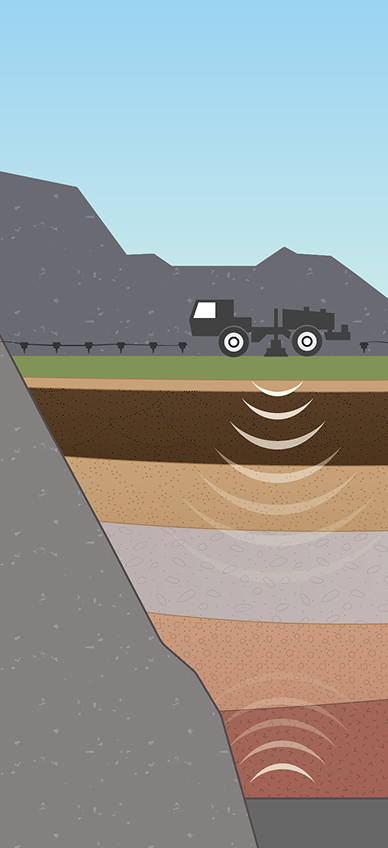

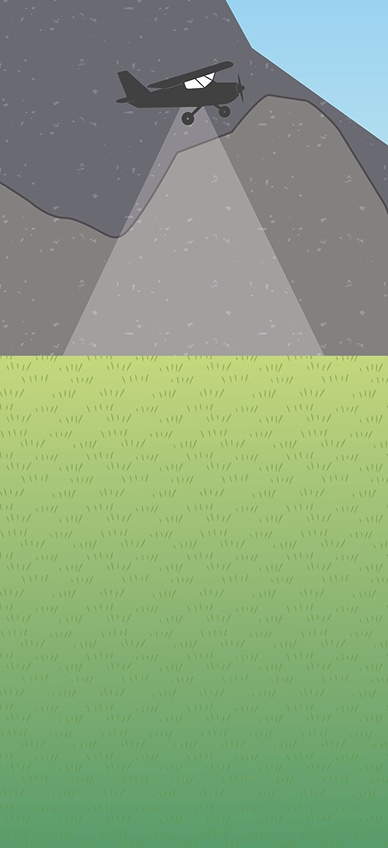

Natural hydrogen source rock is very different than mature, carbon rich rocks that form oil and gas, and the geographical overlap between them is minimal. To find large commercial resources, a new wave of technology-driven frontier exploration is needed. But discoveries will be transformational, both for hydrogen markets and for energy transition in general. Here is how natural hydrogen stacks up against other options:

Low Carbon Intensity

Resulting in a low carbon footprint, on par with electrolysis.

Methodology
Q

References for Carbon Intensity

1 Carbon intensity of hydrogen production values for Central PEM (renewable), Central PEM (grid), SMR, and SMR + CCS were obtained from the 2022 GREET model.

2 The carbon intensity of hydrogen production for geologic hydrogen was calculated based on the production weighted-mean of the baseline geologic hydrogen case study reported in “Brandt, A. Greenhouse Gas Intensity of Geologic Hydrogen Produced from Subsurface Deposits. 2023. EarthArXiv preprint. https://doi.org/10.31223/X5HM1N”, excluding the global warming impact of fugitive hydrogen emissions and embodied emissions of the well casing, consistent with carbon intensity methodology calculated by GREET.

No External Water Inputs

As a primary energy source, it requires no water to support electrolysis.

Methodology
Q

References for Water Consumption

1 Water consumption factors/water intensity values for Central PEM (renewable), SMR, and SMR with CCS were obtained from the 2022 GREET model under the “WCF” tab. The water consumption factor for the central PEM using grid electricity was calculated based on summing the feedstock and fuel water consumption values in the “Hydrogen” tab (see 4.1) setting the electricity source for hydrogen production to the US average electricity mix. This value is similar to the value 27 gal/kg calculated by Webber, M. Environ. Res. Lett. 2 (2007).

2 Geologic hydrogen water consumption factor was estimated based on the production-weighted mean for the baseline scenario reported in “Brandt, A. Greenhouse Gas Intensity of Geologic Hydrogen Produced from Subsurface Deposits. 2023, preprint. EarthArXiv. https://doi.org/10.31223/X5HM1N” which represents the total produced water value.

No External Energy Inputs

As a primary energy source, it requires no electricity or heat.

Methodology
Q

References for Energy Intensity

1 Energy Intensity refers to energy supplied to produce hydrogen and does not include embedded energy for the facility.

2 Energy intensities for electrolysis, steam methane reforming, and steam methane reforming with carbon capture were obtained from GREET 2022.

3 The energy intensity of geologic hydrogen production was calculated based on the baseline scenario reported in “Brandt, A. Greenhouse Gas Intensity of Geologic Hydrogen Produced from Subsurface Deposits. 2023, preprint. EarthArXiv. https://doi.org/10.31223/X5HM1N”. The main energy inputs considered are for the reinjection compressor and gas dehydration.

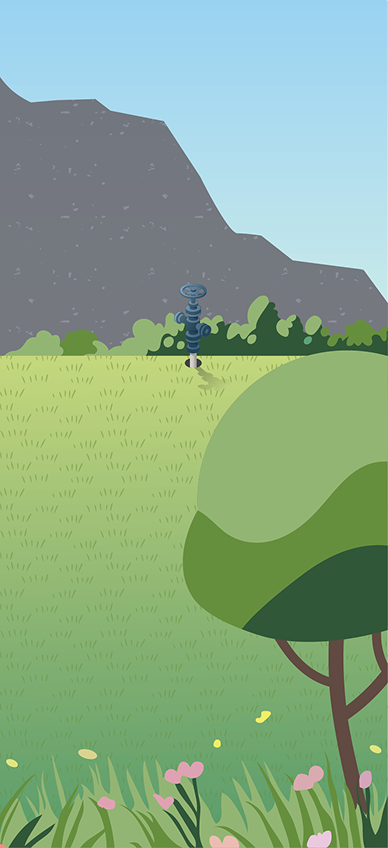

Minimal Surface Disruption

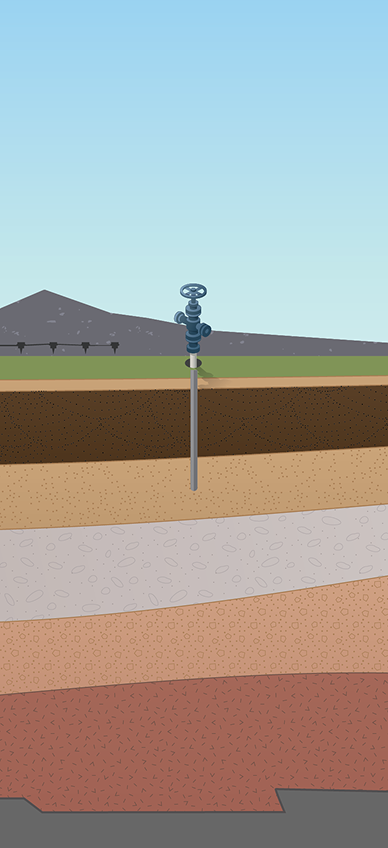

Where even a high-volume hydrogen production site is almost unnoticeable.

Methodology
Q

References for Technology Footprint

1 Yearly hydrogen production based on a commercial, state-of-the-art steam methane reformer modeled in NETL’s recent life cycle report “Comparison of Commercial, State-of-the-Art, Fossil-Based Hydrogen Production Technologies” from April 2022. Annual output from one such SMR was assumed to be 175,791,300 kgH2/year.

2 Electrolyzer efficiency assumed to be 50 kWh/kg H2. For electrolyzers supplied by 100% solar energy, it was assumed 3.5 acres/GWh/year (the solar generation-weighted average across all solar technologies) as reported in NREL’s 2013 report “Land Use Requirements for Solar Power Plants in the United States”. https://www.nrel.gov/docs/fy13osti/56290.pdf. For electrolyzers supplied by 100% wind energy, it was assumed an average of 26 acres/GWh/year, consistent with data obtained from the EIA https://www.freeingenergy.com/math/wind-land-acres-hectares-miles-m119/. For electrolyzers supplied by 100% nuclear energy, a capacity factor of 92% and 1.3 square miles per GW capacity was assumed https://www.nei.org/news/2015/land-needs-for-wind-solar-dwarf-nuclear-plants.

3 The footprint of an SMR and SMR with CCS was assumed to be 100 acres, consistent with NETL’s analysis reported in “Comparison of Commercial, State-of-the-Art, Fossil-Based Hydrogen Production Technologies” from April 2022. The footprint of the natural gas wells to produce NG for the SMR facility was calculated assuming that a natural gas well produces on average 181,647 ft3/day (https://www.eia.gov/petroleum/wells/pdf/full_report.pdf) and that 5 wells could occupy a 10-acre well pad site (https://www.e-education.psu.edu/earth109/node/941).

4 For geologic hydrogen, the footprint of a PSA unit to purify the hydrogen was assumed to be 0.3 acres (https://www.osti.gov/biblio/1090707), and a production weighted mean for the baseline scenario reported in “Brandt, A. Greenhouse Gas Intensity of Geologic Hydrogen Produced from Subsurface Deposits. 2023, preprint. EarthArXiv. https://doi.org/10.31223/X5HM1N”.

Abbreviations: SMR – Steam methane reforming, CCS – Carbon capture and sequestration
